HF-12247
PROJECT: HF-12247
DESCRIPTION: Universal Microprocessor Module HD6433214F16
STATUS: u
LOCALISATION: PI
DOCUMENTATION: TM
PCB: TPD52906#1
DIMENSIONS: 46 x 33 mm
UC parameters
CPU CATALOG NUMBER: UC-046
THN ADDRESS: 0xDC
UC TYPE: 0x08
UC NAME: HD6433214F16
CPU BRAND: HITACHI
FAMILY: H8/3214
ROM: 32K
RAM: 1K
MAX CLOCK: 16 MHz
ADDRESS SPACE: 64K
SUPPLY VOLTAGE: 5V
Extender board HF-60247 with attached modules HF-12247, HF-64115 and HF-1471
Near 2015 I robbed some 100 scrapped hotel TV cards from its HITACHI CPUs HD6433214F16 (H8/3214 family)... Exactly 85 CPUs survived this operation and it was catalogued in my CPU collection as UC-044...UC-127 and UC-290. Latter is still on original module HF-1784#85. There was even more these cards (maybe some 1000 pcs but after desoldering 100 pcs I said THANK YOU :)) ). It was a lot of work... These cards almost certainly went from demolished Hotel Rzeszów, but I have never see it myself (funny thing is that in 1990s I was on interview there to work as TV technician in Hotel Rzeszów for this system but I changed my plans because I've found another job...).
In such way HITACHI HD6433214F16 became most popular CPU in my collection and I created some test modules like HF-9021#1, HF-9021#2 and HF-12247.
Because I couldn't find good debugger for HITACHI H8/3214 I wrote it myself. It is simple DOS simulator/debugger but writing simulators takes a lot of time...
I renamed some instructions mnemonics because I also wrote my own macro compiler. Macro compilers are not so stable as dedicated compilers, so debugger is very helpfull to track errors. I also changed notation, (original HITACHI notation is reversed and have some strange stuff). Because I like AVR assembler style it is similiar to it.
H8/3214 Simulator was registered as HF-65214.

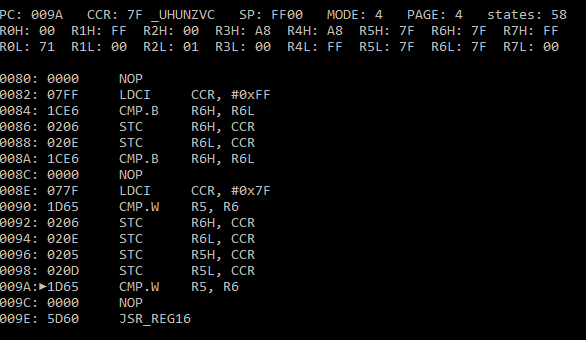

HITACHI H8/3214 SIMULATOR
In this design XTAL is mounted on UC module what is much better than placing it on extender board (less stable variant).
Extension board for this module HF-60247 is under development.
Sources:
[1] HD6433214 Datasheet
