HF-60777
PROJECT: HF-60777
DESCRIPTION: Shield for uC module HF-17777 (RP2040)
STATUS: u
PROJECT START DATE: 2024
LOCALISATION: PL
DOCUMENTATION:
PCB: TPD52919#3
DIMENSIONS: 70 x 50 mm
SUPPLY VOLTAGE: 3.3V or 5V
HARDWARE VERSION: 1.0
CPU: RP2040
CPU BRAND: RASPBERRY
CPU FAMILY: CORTEX M-0
CPU ARCHITECTURE: 32b, Dual Core
FLASH:
RAM:
EEPROM:
MAX CLOCK: 133MHz
CPU CATALOG NUMBER: UC-416
THN ADDRESS: 0x01
UC TYPE: 0xA3

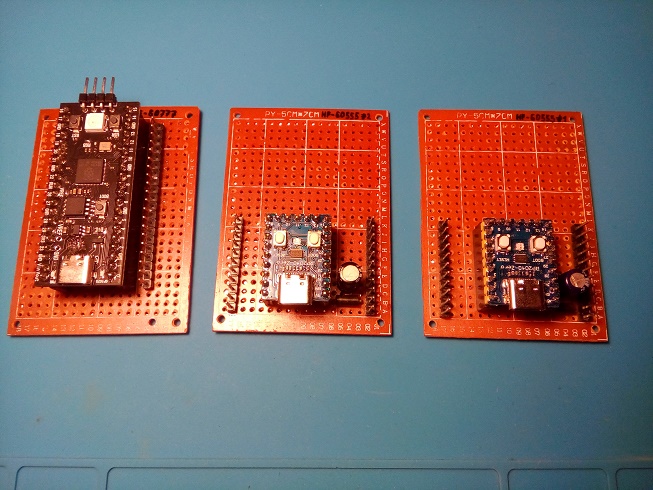

HF-17777 with HF-60777 and HF-17555 with HF-60555
Modules:
HF-60777 is used for various ad-hoc projects.
Designator HF-6077 is planned for HF-17777 and HF-60777 as a complete digital system.
Sources:
[1]
