| Assorted LED Headlamp pictures, links, info. Sea Fishing UK, fishlinks, websites. Electronic and company links too. LED Headlamp built using 75 Nichia LEDs, coming soon Luxeon Star Headlamps, Go to the Luxeon site to see 5 Watt White LEDs. check out my LED Head lamp webpage, info there and links to Nichia, Luxeon, LumiLed, Kingbright, Lumidrives, 5600mcd white Nichias, Superflux, Luxeon Emitters, Rings, Star, and Star/0 PG Drives Technology. |
 |
|
 |
 |
 |
 |
 |
 |
 |
| Ninja Angler TM wearing HID Headlamp above LED. |
 |
| The Phrase "Ninja Angler" and "Ninja Angling" are Trademark and copyrighted to Malcolm Tamblyn 18/01/2003 |
 |
 |
 |
 |
 |
 |
 |

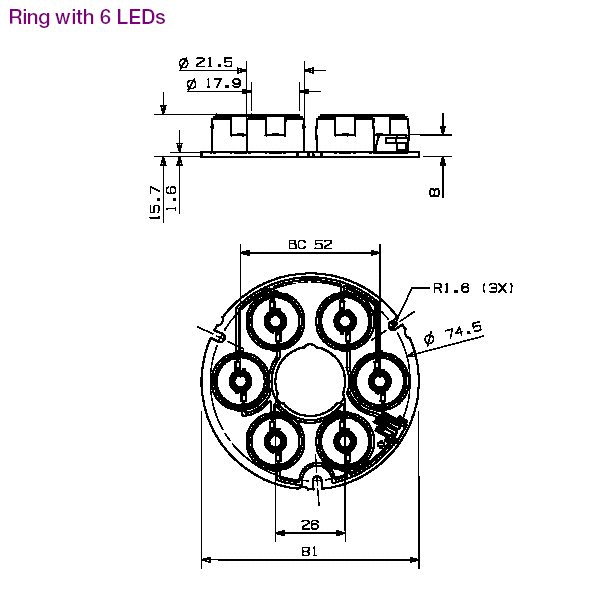

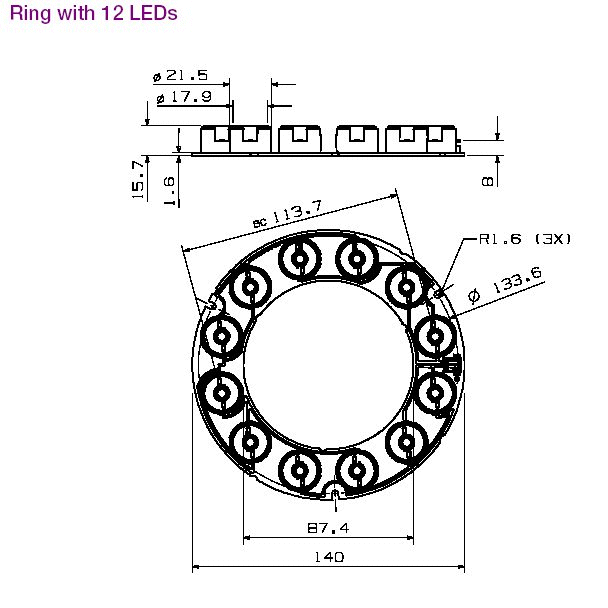

| LUXEON Rings |

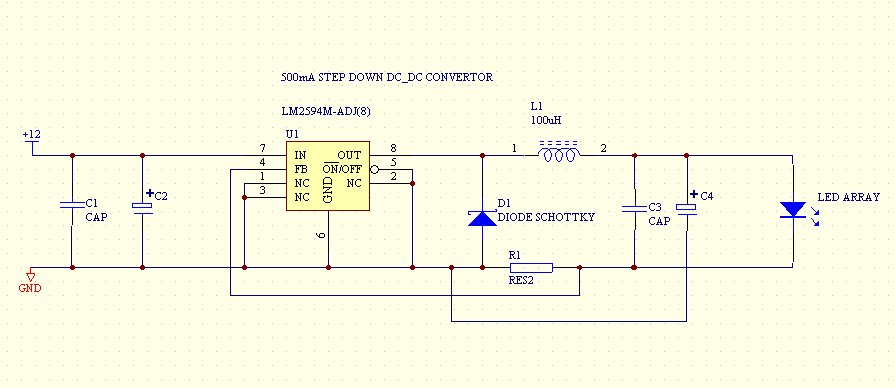

| 500mA LED step-down |

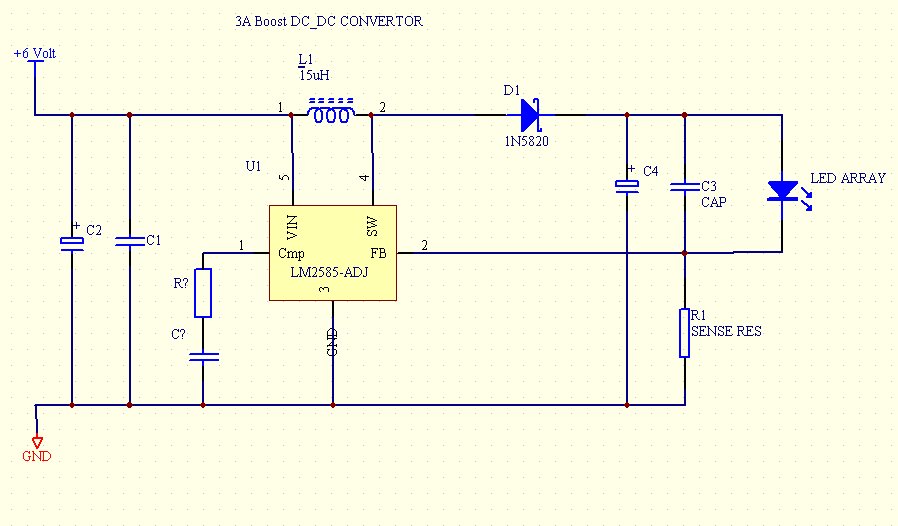

| 3A DC Step-up |
| THE BEASTS, LUXEON STAR EMITTER |

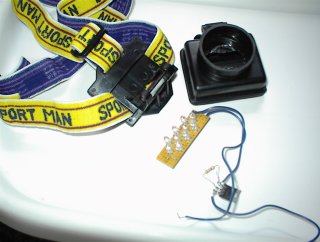

| White 10 LED Headlamp in construction, using Nichia 5600 mCd LEDs |

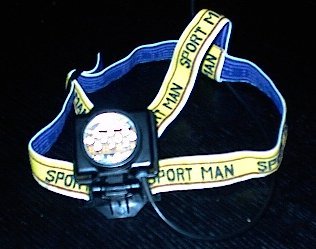

| Built up White 10 LED Headlamp, later upgraded to 18 LEDs . |
| Early 50 LED Headlamp PCB, using Kingbright Red 3500 mCd. |

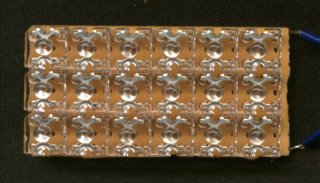

| Lumiled 18 LED Headlamp PCB, using Superflux LEDs, runs at 4 watts. this is the one I use myself today. no night blindness with Amber and the bugs cant see the amber light too. these have a wide 120 beam of light. |
| Me using my Lumiled Superflux LED Headlamps |

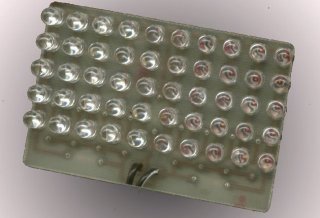

| 75 Nichia LED Headlamp, runs off a 6 volt NiMh battery, so uses a boost convertor to provide the 7.2 volts plus for the LED array. |
 |
| Typical T1 3/4 or 5mm Epoxy LED |
