20 MM Gun System
This information was provide by the USS WASHINGTON BB56
-----------------------------









Location of 20mm Mounts









Barrels 20-65
Mounts 20-65
Projectile Weight 4.3 ounces
Muzzle Velocity 2,740 feet per second
Range Surface
Barrel Elevation = 35 deg.
4,800 yards (2.7 miles)
Anti Aircraft
Barrel Elevation = 90 deg.
10,000 yards (5.7 miles)
Firing Cycle 450 rounds per minute or 7.5 per second

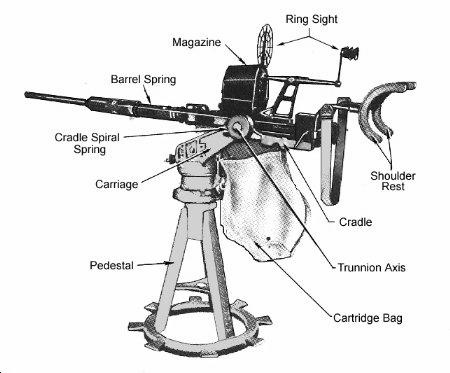

This is the 20mm single mount with the
Splinter Shield removed. They were used
as the last defense when a plane got
past the 5-inch and the 40mm guns.
Click on photo for full view

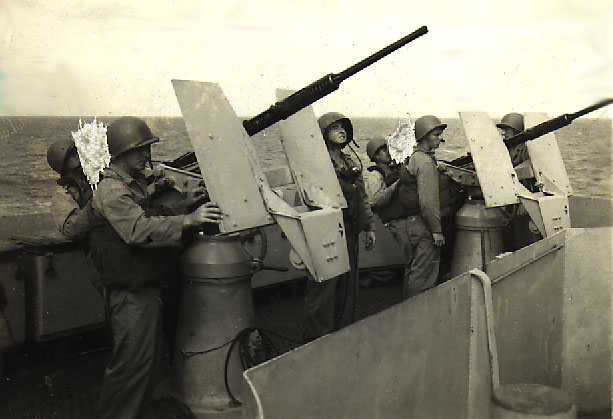

Here are the 20mm Guns with Splinter
Shields in place. The gunsights on this photo
were scratched out by Censors because
they were top secret at the time!

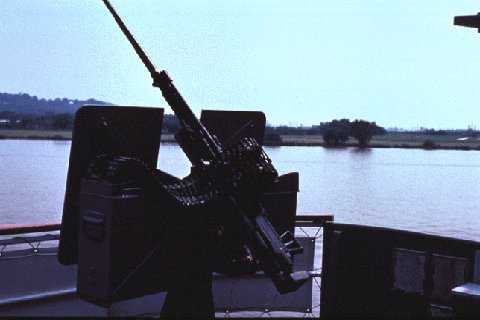

20MM MK 67
