3"50  GUN SYSTEM


-----------------------------









Ship's Installed On LPH, LHA, LPH
Primary Design Use  Anti Air Defense
Ammunition  Fixed 24 lbs
Muzzle Velocity  Full Charge 2700  ft/per sec
Reduced Charge N/A
Range Surface 7  Nautical Miles
Air na
Firing Cycle  40-60 rds per min
Crew  11

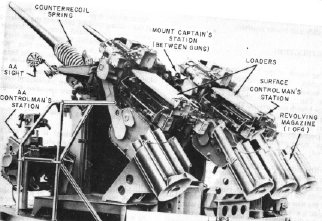

The 3"50 gun replaced the 40MM Quad guns
shortly after W.W.II. This is an internal view of
3"50 gun system.




CLICK ON PHOTO FOR ENLARGED VIEW

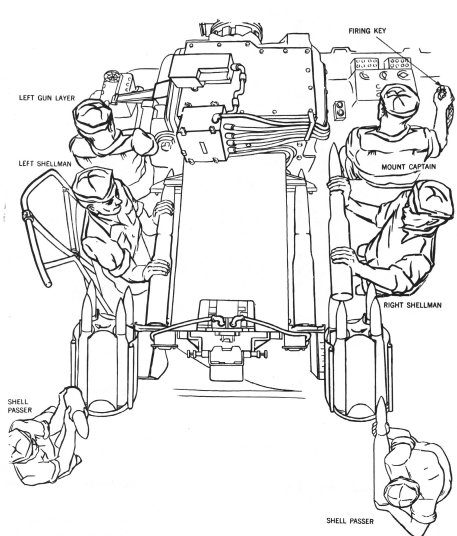

A view of a loading crew showing how the system
was loaded. The ability of the loading crew dictated
how fast the system could fire. A good crew could fire
the gun at about 60 rds per minute.

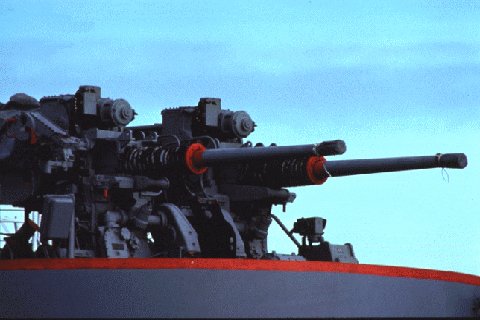

THE 3"50 MK 34 TWIN MOUNT
The 3"50 above is rapid fire semiautomatic gun with a power driven loader installed in a closed twin mount. It has an aluminum shield and can fire up to 60 rds per minute.







CLICK ON PHOTO FOR ENLARGED VIEW
