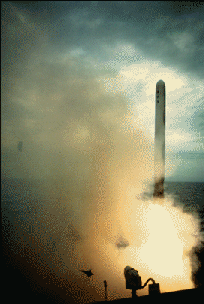

Tomahawk Cruise Missile




Tomahawk Cruise Missile

Description: Long range, subsonic cruise missile used for land attack warfare.

Background: Tomahawk is an all-weather submarine or ship-launched land-attack cruise missile. After launch, a solid propellant propels the missile until a small turbofan engine takes over for the cruise portion of flight. Tomahawk is a highly survivable weapon. Radar detection is difficult because of the missile's small cross-section, low altitude flight. Similarly, infrared detection is difficult because the turbofan engine emits little heat. Systems include Global Positioning System (GPS) receiver; an upgrade of the Digital Scene Matching Area Correlation (DSMAC) system; Time of Arrival (TOA) control, and improved 402 turbo engines.

Features: The land attack version of Tomahawk has inertial and terrain contour matching (TERCOM) guidance. TERCOM uses a stored map reference to compare with the actual terrain to determine the missile's position. If necessary, a course correction is then made to place the missile on course to the target.


General Characteristics

Primary Function: Long-range subsonic cruise missile for attacking land targets.
Contractor: Hughes Missile Systems Co., Tucson, Ariz.
Unit Cost:about $750,000 (over the last four years)
Power Plant: Williams International F107-WR-402 cruise turbo-fan engine; solid-fuel booster
Length: 18 feet 3 inches (5.56 meters); with booster: 20 feet 6 inches (6.25 meters)
Weight: 2,650 pounds (1192.5 kg); 3,200 pounds (1440 kg) with booster
Diameter: 20.4 inches (51.81 cm)
Wing Span: 8 feet 9 inches (2.67 meters)
Range: Land attack, conventional warhead: 870 nautical miles (1000 statute miles, 1609 km)
Speed: Subsonic - about 550 mph (880 km/h)
Guidance System: Inertial and TERCOM, digital scene matching, GPS (Block III)
Warheads: Conventional: 1,000 pounds or conventional submunitions dispenser with combined effect bomblets.
Date Deployed: 1986; Block III: 1995
