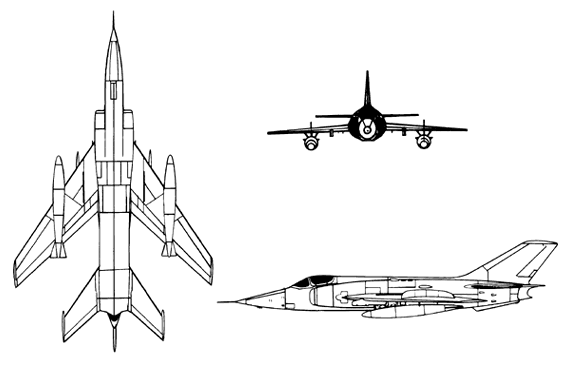

A-5 'FANTAN' |
| |
 |
| |
|
A-5 is one of the jets which can carry a nuclear weapon. It is a
single seat, twin engine fighter and bomber. It can carry a5-20 kT
nuclear bomb. It offers enhanced combat performance particularly at
low and super-low altitude. It is the latest renovated type equipped
with imported navigation and attack systems. It is used mainly to
assist ground troops in attacking concentrated targets on land, key
transportation points and ships near the coast. It can also intercept
and fight enemy aircraft. It has two WP-6 after burning type of
turbojet engines. |
| |
|
SPECIFICATIONS |
|
Manufacturer |
Nanchang Aircraft Company, China. |
| |
|
|
Crew |
One |
| |
|
|
Wing Span |
32 ft (9.68 m) |
| |
|
|
Length |
51 ft 4.25 in (15.65 m). |
| |
|
|
Max Speed |
642 kt (739 mph) |
| |
|
|
Height |
14ft (4.33 m) |
| |
|
|
Internal Fuel |
5150 lbs (2883 kg) |
| |
|
|
Service Ceiling |
52,500ft (16,000 m) |
| |
|
|
Max T/O Weight |
25,000 lbs |
| |
|
|
Engine |
2 X Shenyang Wopen-6 WP 6 (After
burning type,5732 lbs thrust turbojets). |
| |
|
|
Armament: |
Two 23-mm Type 23-2K cannon with
100 rounds per gun, provision for 2000 kg (4,409 Ib) of disposable
stores, including AAMs, free-fall bombs, cluster bombs,
rocket-launcher pods, NAPALM tanks, drop tanks and ECMS pods, on 10
external hard points, air-to-air missiles such as AIM-9 'Sidewinder'
short-range AAM, PL-2, PL-2B, PL-7 and R550 Magic. |
| |
| |
|
