TRAINERS |
| |
|

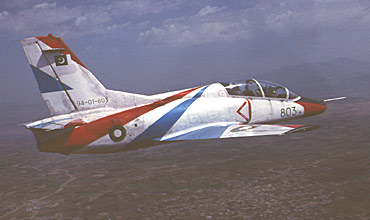

KARAKORAM - 8
(K-8) |
|
Karakoram-8 or K-8 is a basic advanced jet trainer. K-8 is a joint
venture of Pakistan and China. In 1994 it was
introduced in Pakistan Air Force. It is used by a number of air
forces including China, Pakistan,Myanmar,
Zambia, Namibia and
Sir-Lankan air forces. |
|
INVENTORY
8 were delivered as evaluation. May reach to 75. |
| |
|
SPECIFICATIONS |
|
Power Plant |
Garrett TFE - 731 - 2A - 2A Turbo fan |
|
Take-Off Thrust |
3600 lb |
|
Height |
13.81 ft |
|
Length |
11.6m |
|
Wing Span |
9.63m |
|
Max. Taking off Weight |
4,330kg |
|
Max. level speed |
800km/h |
|
Service Ceiling |
13,000m |
|
Ferry Range |
2,250km |
|
Max. Overload |
-3 ~ +7.3g |
|
Endurance |
4.4h |
|
 |
| |
| |
|

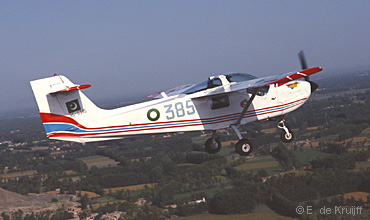

MUSHSHAK /
SUPER MUSHSHAK |
|
Mushshak is a primary flight trainer. It is built, used and exported
by Pakistan. The original model is MFI-17 named as 'Mushshak' and
MFI-395 named as 'Super Mushshak' which was originated from Sweden and
is built under license by Pakistan. It is exported of Iran, Oman,
Syria, Saudi Arabia has made a $40 m deal to buy this plane. |
|
INVENTORY
80 to
PAF, around 150 to Army + exported |
| |
|
Power Plant Type |
Textron Lycoming
AE10 - 360 - A1B6 |
|
Power |
200
HP |
|
Height |
8 ft 6.5 inch |
|
Length |
23.5 ft |
|
Wing Span |
29 ft |
|
Max Take-Off Weight |
2,645 lb |
|
Max Speed |
130 kts |
|
Cruise Speed |
115 kts |
|
Range |
580 nm |
|
Rate Of Climb |
1,220 fpm |
|
Load Factor |
+6, -3 |
|
Endurance |
10 hrs |
|
 |
| |
| |
|
F-16/B (TRAINERS)
|
|
F-16/B is a two seat trainers for
F-16 Fighting Falcon,
It was bought by Pakistan in early 80's. It can be used as a fighter
but basic purpose is training. |
|
INVENTORY
11 |
| |
| |
|
Crew |
Two (2) |
|
Wing Span |
32 ft 8in (9.8 m) |
|
Length |
49ft ft, 5 in (14.8 m) |
|
Max Speed |
2.0 Mach |
|
Range |
2280 miles |
|
Service Ceiling |
> 50,000 ft |
|
Max T/O Weight |
37,500 lbs |
|
Engine |
1 X F-100 PW-200/220 |
|
| |
| |
| |
|
FT-7P / PG
(TRAINERS) |
| |
|
INVENTORY
21 |
| |
|
Manufacturer |
Xian Aircraft China |
|
Crew |
One |
|
Wing Span |
23 ft 6 in (7.16 m) |
|
Length |
51ft ft, 9 in (15.7 m) |
|
Height |
15 ft ft, 9 in (4.7 m) |
|
Max Speed |
1300 mph |
|
Range |
550~850 |
|
Service Ceiling |
50,000 ft 14,000 m |
|
Max T/O Weight |
19,800 lbs |
|
Engine |
1 X WP-7B (Tumanskii
R-1 IF-300) |
|
| |
| |
|
MIRAGE III OD/DP
MIRAGE 5 DPA |
| |
|
INVENTORY
13 |
| |
| |
| |
|
FT-5 |
| |
|
INVENTORY
20 |
| |
| |
| |
|
T-37 B/C 'TWEET' |
| |
|
INVENTORY
20 |
| |
| |
| |
|
FALCON DA-20 |
| |
|
INVENTORY
2 |
| |
| |
| |
| |
