HF-17576


PROJECT: HF-17576

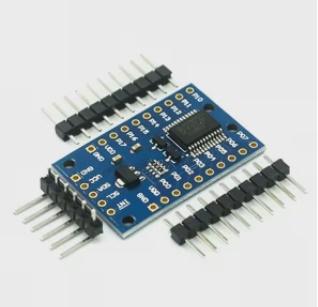

DESCRIPTION: 16 channel expander I2C PCF8575 3.3V 5V
BRAND: ?
STATUS: u
PROJECT START DATE: 2024
LOCALISATION: FH
DOCUMENTATION:
PCB: TPD57576
DIMENSIONS: 32 x 21.5 mm
CHIP: PCF8575
VERSION: 1.00


HF-17576


Project Info

This is another Aliexpress cheap and very usefull module. I wrote driver for HF-6030 first, which was later ported to other systems.
HF-17576 is datachable (goldpins), so it can be used ad-hoc in various projects.
It is also easy way to create level translator beetween 3.3 V devices and 5 V systems or vice-versa.

Special extension test boards was made for this module: HF-40576.


AVR drivers:
AVRDRV#VERSIONSYSTEMREMARKS
605760.03HF-6030for AVR uC without relocated I/O
615762.00HF-6050, HF-6128, HF-6158, HF-6169for AVR uC with relocated I/O




Other Expanders
PROJECTDESRIPTIONI/OREMARKS
HF-1210212 bit shift register BU2092 12
HF-1781Expander RICOH A054-510572
HF-17576Expander I2C 16-kanałowy I/O PCF8575 3.3V 5V16
HF-17795SBC104 extender6x6+8
HF-17801Karta output 80 wyjść na bazie Z-70280output only
HF-6030Digital System30function accesible via THN
HF-6048Digital System24function accesible via THN
HF-6050Digital System48function accesible via THN
HF-6128Digital System48function accesible via THN
HF-6158Digital System48function accesible via THN
HF-6169Digital System48function accesible via THN
HF-60311Universal I2C Expander ATMEGA1630
HF-60312Universal I2C Expander ATTINY231315
HF-60313Universal I2C Expander ATTINY133
HF-60314Universal I2C Expander STM8S00314



Sources:
[1] PCF8575 Datasheet - Remote 16-bit I/O expander for I2C-bus
[2] HF-17576 AVRDRV#60576
[3] HF-17576 AVRDRV#61576
