      Diesel Air England

The 100hp engine The twin cylinder opposed piston engine has two pistons in each cylinder with the combustion chamber formed between the crowns of the pistons. It eliminates the need for a cylinder head, camshaft and associated valves and has in effect two half length crankshafts linked by a gear train driving a centrally mounted propellor. The cylinders are ported at each end with one ring of ports opened by the air piston supplying the fresh air charge, and the other opened by the exhaust piston and connected to the exhaust system.



   FIRST FLIGHT OF A PACKARD DIESEL 1928

Since that time Captain Woolson has built four of the engines, all of 200 hp. capacity, developing 1 hp. for every 2 lb. of weight



DeltaHawk

2-Cycle Piston-Ported Diesel Engines   160 to 200Hp  Turbocharged & Supercharged

DeltaHawk made aviation history Saturday, May 3, 2003 at John H. Batten Field in Racine, Wisconsin.  A Velocity RG powered by DeltaHawk’s DH160V4 diesel engine



Wilksch Airmotive's  3 cylinder 120

 The WAM-120 will run on turbine fuels and is turbo-charged for good hot/high power and altitude performance. 90kW (120HPWeight: 100kg inc. oil system and cooling pack TBO: 1000 hours launch aim with extension to 2000 hours



Centurion - Certified Jet Fuel Aircraft Engines  From Mercedes A190 Diesel car

The Centrion 1.7 is a 4-cylinder 4-stroke 4-valve in line diesel engine with common rail direct injection. It is turbo charged and liquid cooled, uses a wet sump oil system and an electronical control unit. The gear ratio between prop and engine is i = 1:1,69- Take off power (at 2300 rpm): 99 kW (135 hp)
- Torque: 410 Nm
- Constant power: available max. power at respective altitude
- Torque at BEP: 340 Nm
- Engine swept volume: 1.689 cm³ (103.07 cu.in)
- Bore: 80 mm (3.15 in)
- Stroke: 84 mm (3.31 in)
- Compression ratio: 19:1

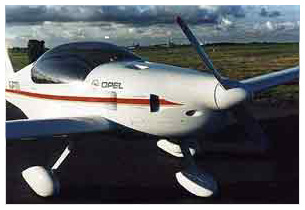

Dieselis

Dieselis is using a 1500 Isuzu diesel engine to wich is added a 1.66 : 1 cog belt reduction drive. The engine itself (cast iron block) weighs 232 lbs instead of 132 lbs for a Rotax 912 or 165 lbs for Volkswagen. With accessories set on the engine, the weight up to 300 lbs. The engine is fitted with turbo and intercooler. Technical datas of the engine with turbo, but without intercooler, announce 67 hp @ 4600 rpm, and a maximum couple of 123 Nm between 2600 and 2800 rpm. The power curve is a diesel one, with a flat top : 63 hp are reached at 3600 rpm, only 4 hp are remaining for the last 1000 rpm. The intercooler, by cooling admission air, would increase power of nearly 10 %. economy 1.3 gph (6 litres/h  Redrive 700 hrs

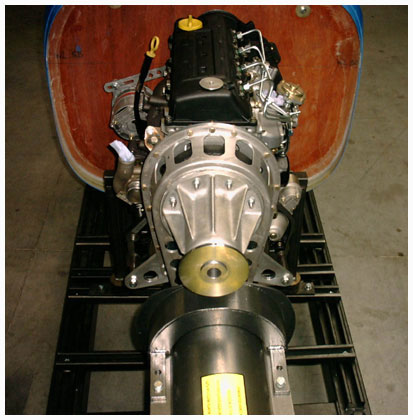

Ranger R is the high tec composite Dieselis

Engine Isuzu Y17DT
Turbo en Intercooler
Reduction drive belt drive 1:1.66
Power 90 hp @ 4400 RPM Fuel use 10 ltr/h 2.6 USG/hr



FK Light Aircraft  Petrol

http://www.ecofly.de/    SMART turbo motor



Renault SMA SR305-320

Base weight : 192 kg Equiped: 221 kg   TBO : 3000 hours

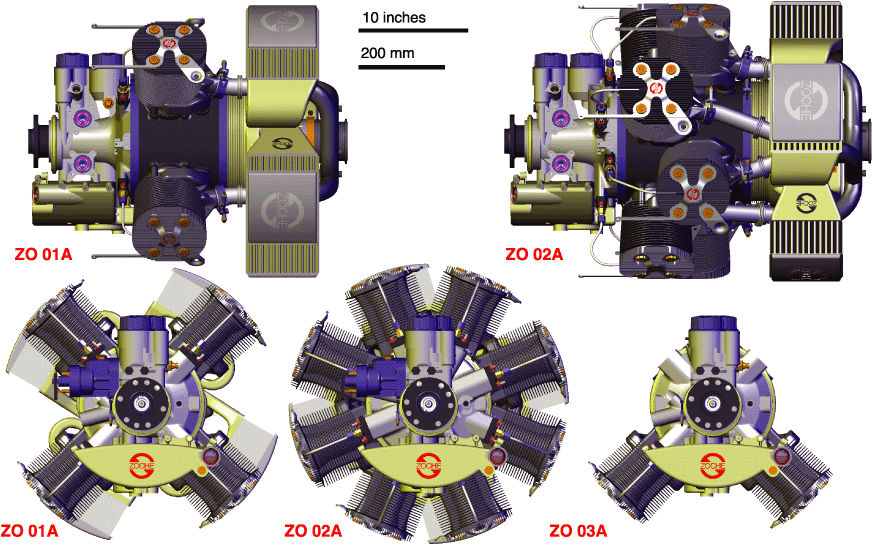

 ZOCHE aero-diesel

Power at 2,500 rpm110 kW • 150 hp84 kg • 185 lbs

nice video

http://www.zoche.de/Zoche_video.html

1.9 MB video clip



   Rotary Power International


SmartPlug Diesel Rotary
Single rotor Mazda RX7
 SmartPlug ignition system!
 Wankel Rotary
 1 rotor
 8.5:1 compression ratio
 650 cc
 Diesel fuel
 Distributorless


Diesel MotorBike  1
Diesel MotorBike  2
Diesel MotorBike  3
Diesel MotorBike  4
Diesel MotorBike  5


BMW- Daihatsu bike

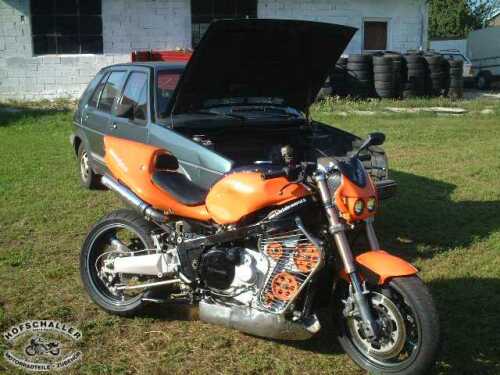

Karl Hofschallers DieselFighter.

 VW 1600 Diesel Golf Engine.

Quicktime video



Links Redrive

http://www.geocities.com/redrive_psru/

Diesel Engine Plane Group Chas11  http://groups.yahoo.com/group/chas11nz

Alternate Aircraft Engines  http://groups.yahoo.com/group/alternate-aircraft-engines

How Stuff Works Diesel Engines http://auto.howstuffworks.com/diesel1.htm





George Graham E-Racer using a mazada rotory engine with a RX7 gearbox stuck in 2nd gear many hours of use plans $35.0
