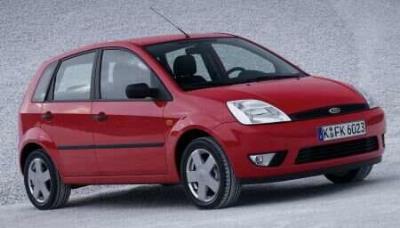

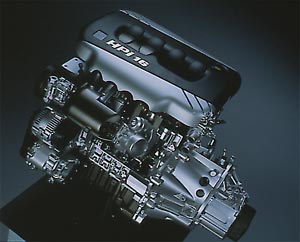

PSA Peugeot Citroën and Ford  second-generation 2.0 litre engine known respectively as the HDi 2.0 litre and the Duratorq TDCi 2.0 litre.

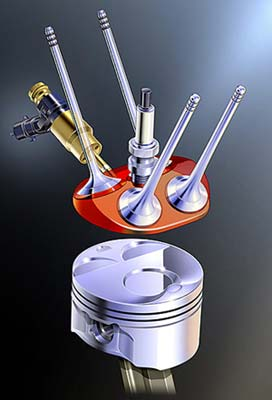

The new powerplant represents the latest development in the 2.0-litre HDi family, which has equipped PSA Peugeot Citroën’s mid- and upper-range cars since 1998. It manages up to six different injections and delivers an injection pressure of 1,600 bar.136 bhp (100 kW), it offers 25% more power than its predecessor,
  Spare parts price list Uk pdf

1.4TDCI




















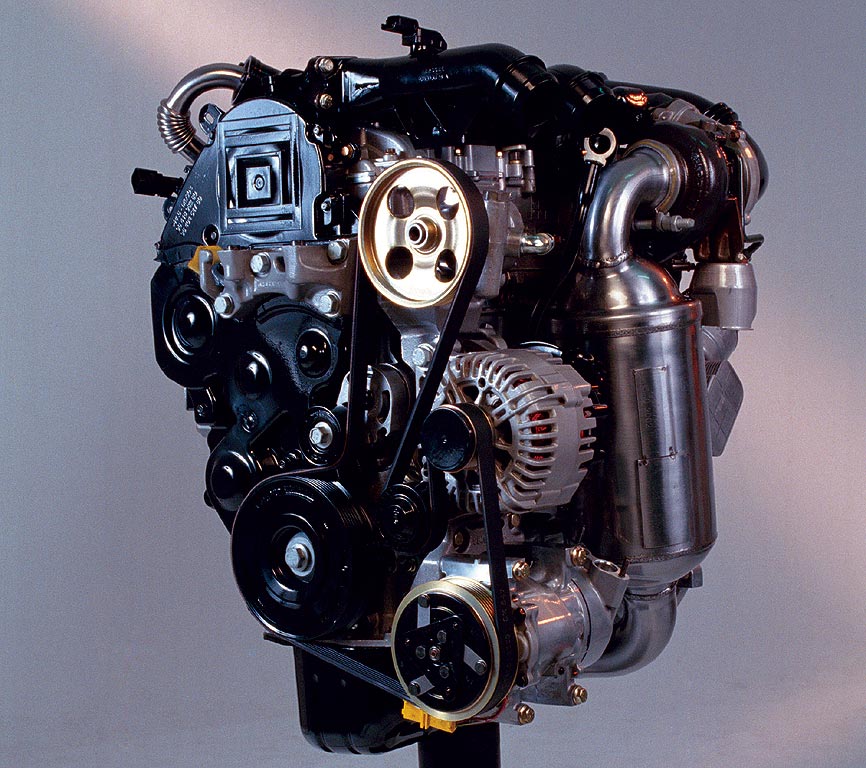

1.6hdi

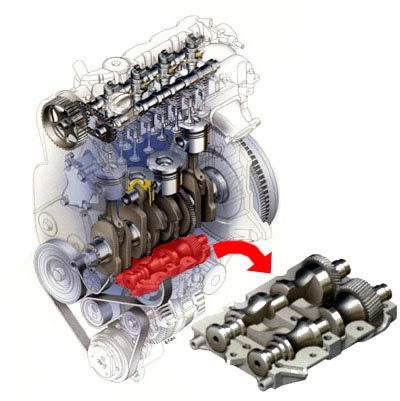

Peugeot 406 hdi 2.2



BMW Mini and Toyota  Yaris - to be supplied by Toyota

The all-new 1.4-litre direct injection Toyota turbo diesel will be the first diesel ever fitted in a Mini, and is expected to draw on technology developed by Toyota subsidiary Daihatsu. The Daihatsu turbo diesel produced fuel economy figures below 3 litres/100 km when fitted in a Daihatsu compact sedan.



Toyota Yanis


Toyota Yaris England or Echo Australia ECHO Philippines or Vitz Japan 1.4ltr D-4D
The 66mpg Toyota Yaris D-4D. 170Nm is realised at only 2,000rpm,... Power output is modest at 74bhp,.the block is  aluminium, making it one of the lightest diesels on the market."



 Both the cylinder head, block and air-air intercooler are made of aluminium alloy. As another clever way to save space and weight, the Toyota turbocharger is completely integrated into the exhaust manifold and the alloy intake manifold is also integrated into the cylinder head.  in a weight of just 99kg for the 1.4 D-4D engine

The normally aspirated 1.3-litre engine is a version of the Yaris with different state of tune to pump out 90 hp. It also features VVT-i continuous variable valve timing although Daihatsu called it "DVVT" instead (D for Daihatsu?).

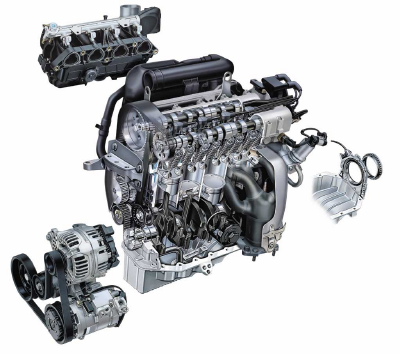

VW Lupo 1.2-litre and 1.4   three-cylinder engine the first diesel direct injector to have not only its cylinder head but also its cylinder block in aluminum. At just 220 lbs
Because of inherent design issues with a three cylinder design, Volkswagen used a balancer shaft to qwell vibrations and the result is an extremely smooth engine. Injection is via pumpe duse high-pressure unit injector elements arranged in the cylinder head and driven by the camshaft. The higher pressure permits a more efficient burn with improved performance and economy.

The 1.2l TDI also utilizes a Garrett turbocharger with variable-vane turbine geometry.
The 1.2-liter TDI has an output of 61hp and a maximum torque of 140 Nm (103 lb-ft) is available between 1,800 and 2,400 rpm.

VW  Polo  Skoda Fabia and the Seat Ibiza

The Polo is one of Volkswagen's most important models, selling just short of 300,000 units in Europe

1.9 4-cylinder 100bhp direct injection diesel

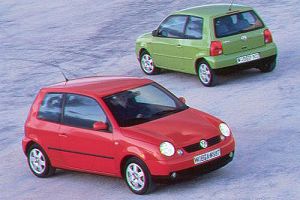

VW Lupo
Techn. Data

Series

Tuning

 Displacement

1191
 Compression ratio

19.5:1
 max. Power

45 kW / 61 hp 66 kW / 90 hp
 max. Torque

140 Nm
bei 1800 rpm
220 Nm
bei 1800 rpm

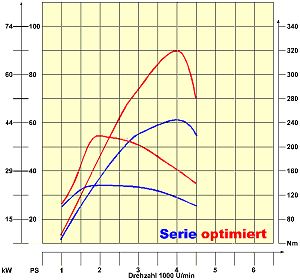

Lupo Video Realplayer needed Injectors in German  Video



Hyundai  Matrix/Getz 1.5-litre turbo diesel Matrix 1,5 crdi 81hp 60kw 184Nm 3 Cylinder  developed by Detroit Diesel for Hyundai,



Hyundia India
CRDi
    Model Designation CRDi
   Configuration and 3-Cylinder, in-line
   No. of Cylinders 12-V, SOHC, Diesel
   Fuel system Direct Injection
   Displacement 1493
   Ignition System -
   Max. Horsepower 82/4000
   Max. Torque 19.1/2000 ~ 2700
HMIL's mid-size sedan offering. HMIL has sold more than 27,000 units (6/01) of the Hyundai Accent model. A diesel (Peugeot TUD 5 57 bhp engine) and notchback (Viva) versions are also available.
  India

Engine, Gearbox & Performance

Fiat Palio D
Tata Indica D
Maruti Zen D Peugeot TUD5 engine
Displacement (cc)
1910
1405
1527
Max power (bhp)
63
53.5
57
Max Torgue (kgm)
12.2
8.7
9.7
Valve gear
2per cyl,sohc
2per cyl,sohc
2per cyl,sohc
Top speed
152
136
151

Maruti (India)                         Suzuki (GM) owns 50%

Indica 1.4

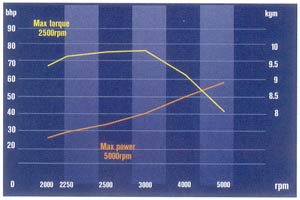

Maruti-Esteem- Diesel1.5-



Mitsubishi India  SLXd  Diesel

Type 4CYL.IN-LINE SOHC
Displacement cc 1998
Max.Power (HP)(PS)/RPM: 68/4500
Max.Torque Kgm/RPM: 12.54/3000





TOPAZ 2CDDI
Displacement

Max. output (net) Max. torque (net)
659cc 37kW [50ps] / 3,500rpm 135N•m [13.8kg•m] / 1,500rpm
PHOTO 2-Cycle Diesel Engine

Daihatsu developed this next-generation direct- injection diesel engine especially for minivehicles. Its direct- injection common rail system achieves outstanding combustion performance, for large low-speed torque and remarkable fuel economy.
To enhance residual gas scavenging efficiency, which affects 2-cycle engine performance, this configuration employs dual exhaust ports and a reshaped scavenging port, thereby raising power and reducing exhaust gas. Piston and combustion chamber shapes are optimized for high performance, high efficiency and cleaner emissions. This advanced diesel engine is ready to meet Japan's new 2005 emissions regulations.



    Daihatsu



diesel_turbo_engine

Performance Curve

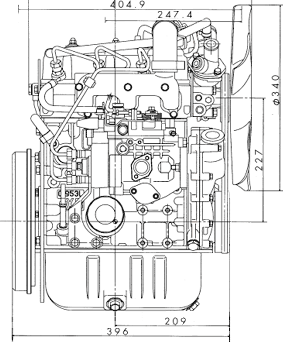

Dimensions

Model DM950DT DM950DTH
Number of cylinders 3 in-line
Combustion System I.D.I
Bore x stroke mm
72 x 78 72 x 78
Displacement cm3
952 952
Horsepower
kW / 3600 RPM
Gross 23.0 25.5
Net Intermittent 21.0 23.0
Net Continuous 18.5 21.0
Torque
Nm / 2400 RPM
Gross

73.6 79.5
Net Intermittent 67.2 71.7
Dry weight kg
89 89
Direction of rotation Counterclockwise (looking from flywheel)
Lubricating system Pressure feed with spin-on oil filter
Engine oil capacity ltr
3.0
Cooling system Liquid cooled including water pump & fan (radiator optional)
Alternator 12-14 Volt , 40 Amp
Starter 12 Volt , 1.0 kW





Renault

1.0-litre Diesel fitted to a Twingo.



The three-cylinder engine, which heads a raft of new powerplant advances from Renault, is fitted to a prototype Twingo, codenamed W88, and develops 60bhp but has no flywheel. Instead, there’s the ADIVI, a starter-alternator system with an engine cut-out facility for stop-start traffic.Valladolid in Spain

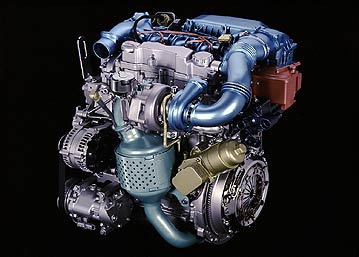

Cilo 1.5 DCI 65bhp and 1.5 Dci 80bhp

 Espace will have  the G9T 2.2 dCi 16-valve common rail diesel engine. 130 to 135bhp and maximum torque from 29.7 to 33.5, depending on the version.

In 1997, the Mégane 1.9 dTi was the first French car to be equipped with a direct injection diesel engine, a technology which resulted in a gain of about 17% in fuel consumption and emissions by comparison with pre-chamber diesels.

 Laguna, the F9Q, a 1.9-litre common rail turbo diesel. This will feature a variable-nozzle turbocharger, boosting output from the current 110bhp and 25.7kgm of torque to 120bhp and 27.8kgm.

Following the F9Q is a replacement for the naturally aspirated 1.9D, the 1461cc 1.5 dCi. There will be two versions, the first delivering 65bhp and 16.5kgm torque. The second will have an intercooler bumping power up to 80bhp and giving 19kgm. Making its debut on the 1.5 dCi is a new common rail injection system from Lucas. Compact spherical casting replaces the usual rail, while operating pressure is 1600bar, much higher than existing 1350bar  time between pre-injection and main injection is only 0.1sec, which is very fast.”

Renault is also working on the development of the "F9Q" 1.9-litre engine family by offering regular technical upgrades.  Following the 1.9 dTi of 80/100bhp and the 1.9 dCi (110bhp/250Nm) with Common Rail, a new version with variable-nozzle turbocharger has been developed for 2000.  This engine will offer greater power (about 120bhp) and torque (270Nm).  A further version, embodying a 16-valve cylinder head and a 1,600 bar second generation Common Rail system, is under investigation.  Such a development could raise power output to 140bhp and torque to 300Nm, while being able to meet the Euro 2005 emission limits.

ADIVI (Alternateur Démarreur Intégré au Volant d’Inertie: flywheel integrated starter-alternator) is a major step forward in electrical systems and their contribution to the internal combustion engine. The conventional alternator, starter motor and flywheel are replaced by an electric motor interposed between the engine and the gearbox.  This system has several functions :  starter, generator

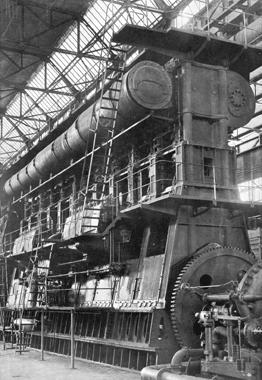

Fiat Diesel  18,000 HP  "Vulcania". Milano 1937



Isuzu  4EE2-TC Diesel

The 16-valve DOHC direct-injection engine is produced at Isuzu Motors Polska Sp. z o.o. in Poland.
By adopting a new electronic distributor-type high-pressure fuel-injection pump, pilot injection and two-stage valve nozzles, the 4EE2-TC meets strict Euro III emission regulations. The German carmaker Adam Opel AG and Honda Motor in Europe are using the engine in its passenger cars, which are gaining a reputation for their excellent fuel efficiency with powerful performance.


Main Specifications (Opel car)

Displacement:1,686 cc
Max Output: 55 kW (75 PS)/4,400 rpm
Max Torque: 165 N-m (16.8 kg-m)/1,800 rpm
Vehicle on Board: Opel Astra/Corsa, Honda Civic
4EE2-TC Diesel





Honda Turning first to Isuzu for the supply of diesel engines, Honda then began development . Honda's 2.2 litre i-CTDi over 140 PS and a maximum torque figure of around 340 Nm.  in the Accord from early 2004, Honda says the all-aluminium i-CTDi employs second-generation common-rail technology to provide further advances in fuel efficiency and refinement. It also features a turbocharger and four valves per cylinder,

alt

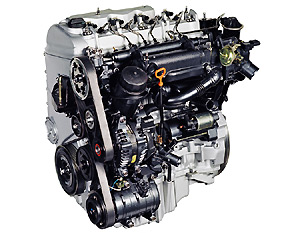

Honda I-CTDi diesel engine

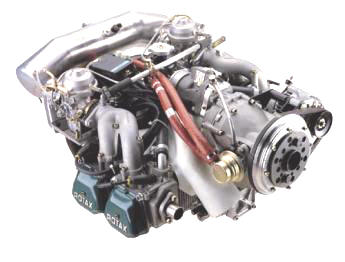

Rotax 4 stroke aircraft engines Typical Power, Torque and Fuel Consumption

How much Power weight do you need? Standard light plane Gas motor

1200cc engines

 80hp

912 ULS 100hp

Turbo 914 UL 115hp

Power setting (%)

65

75

100.

65

75

100*

65

75

100*

RPM

4800

5000

5800

4800

5000

5800

4800

5000

5800







Maximum take off power













Power



















KW

37.7

43.5

59.6

44.6

51.0

73.5

47.8

55.1

84.5

HP

50.6

58.4

81.0

59.8

68.4

100.0

64.1

73.9

115.0





















Torque



















NM

75.0

83.0

98.1

88.7

97.4

121.0

95.1

105.2

139.1

Ft Lb

55.3

61.2

72.3

65.4

71.8

89.2

70.1

77.6

102.6

Price$11k to 18k







11k



12k





18k

Fuel Consumption



















Litres/Hr

15.8

19.2

23.8

18.0

20.0

27.0

18.3

21.4

34.0

U.S. Gal/Hr

4.2

5.1

6.3

4.8

5.3

7.1

4.8

5.7

9.0

Imp. Gal/Hr

3.5

4.2

5.2

4.0

4.4

5.9

4.0

4.7

7.5




Typical Installation weights

 912UL 80hp

   912 ULS  100hp

914UL 115hp

KW/HP

60.4

81.0

73.5

100.

85.7

115.0

Items

Kg.

Lbs.

Kg.

Lbs.

Kg.

Lbs.

Engine with carbs

55.0

121.2

56.6

124.7

64.0

141.1

Exhaust system

4.0

8.8

4.0

8.8

4.0

8.8

Airbox

-

-

1.3

2.9

-

-

Air filter(s)

0.3

0.7

0.3

0.7

0.2

0.4

Radiator

1.0

2.2

1.0

2.2

1.0

2.2

Oil Radiator

0.5

1.1

0.5

1.1

0.5

1.1

Engine truss assembly

-

-

-

-

2.0

4.4

Rectifier / regulator

0.1

0.2

0.1

0.2

0.1

0.2

Electric fuel pumps

-

-

-

-

0.7

1.5

External alternator

-

-

-

-

3.0

6.6















Installed weight

60.9

134.2

63.8

140.6

75.5

166.4

Weight to power

1.008

1.657

0.868

1.406

0.881

1.447



Kg/KW

Lbs/HP

Kg/KW

Lbs/HP

Kg/KW

Lbs/HP



Pdf Files Rotax Drawing 912ul-80hp.pdf 912uls-100hp.pdf

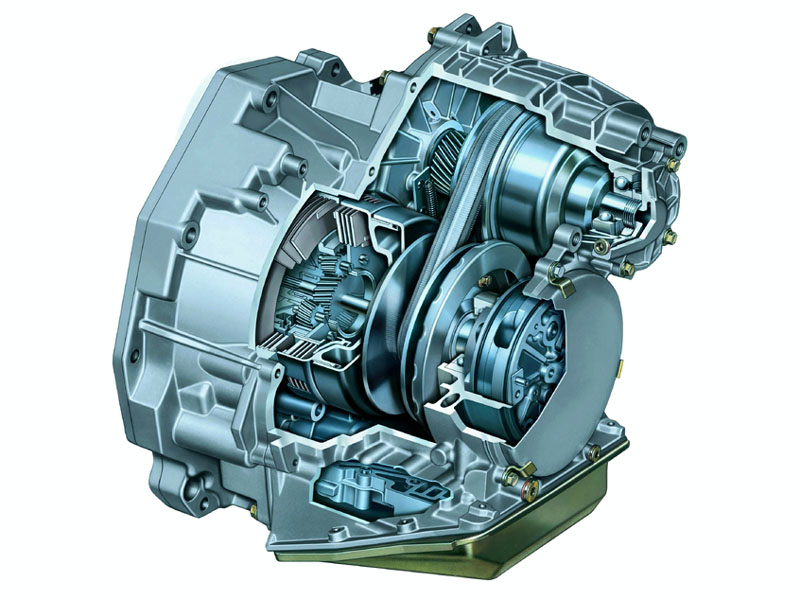

Mini CVT





Pdf Files CH701 diy porting

Html Files

Carbon Fiber Manifold Propellor.htm Diesel Engines Torque

Mht Files

Digital altimeter

ReadVacuumGuage
Doc Files Carbon Fiber Manifold Digital altimeter



EFFICIENCY

The specific fuel consumption of the gasoline engine is low (186gr/hp/h) up to 3000 rpm. The efficiency of direct injection diesels is better, about 165 gr/hp/hr. By comparison, the consumption of a Rotax 912 (without mix control or turbo) varies between 215 and 295 gr/hp/h



1 Litre of gas/petrol = 0.72 kg      80 Ltrs = 58kg

1 Litre of diesel = 0.85 + 25 % better fuel economy       kg x 2.2 =lbs









VW 1.6 turbo diesel  90ft. lbs.  The 1.9 TD produces over 140 ft. lbs of torque

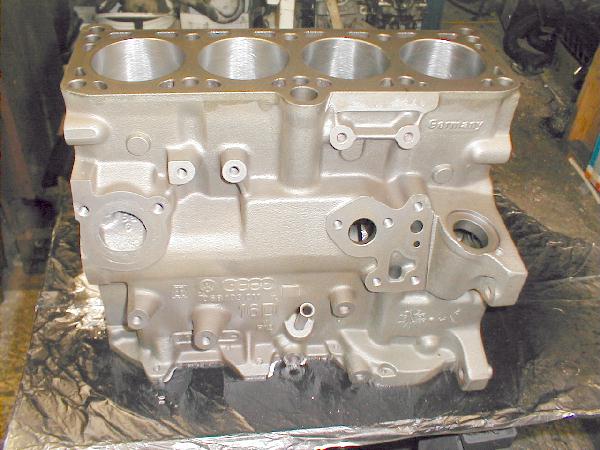

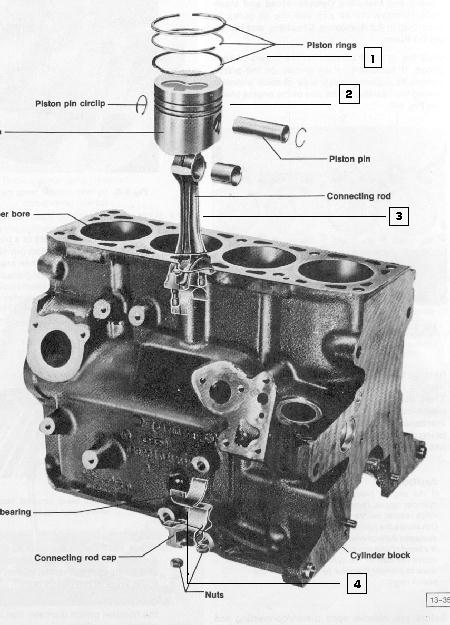

1-Block cast iron 80 lbs

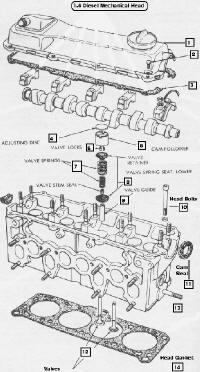

2-Head 35 lbs
3-Crank 38 lbs
4-Rods 6 lbs
5-Pistons 8 lbs
6-Oil Pump 5 lbs
7-Oil Pan & Valve Cover 8 lbs
8-Gasket Set & Bearings 3 lbs


Total Weight  183 lb





 80 lbs cast iron



http://autos.groups.yahoo.com/group/Audi-VW-Diesels/

http://autos.groups.yahoo.com/group/dieselvolkswagenclub/

http://autos.groups.yahoo.com/group/VW-TDI/

VW Industrial Engines

http://www.maesco.com/products/vw_engines/vw_engines.html



Engine



ADE

ADG

Type of Engine

diesel w/swirl chambers

Turbocharger

Yes

No

Cylinders

4 in line

Displacement (cc)

1896 cc

Bore / Stroke

79.5 / 95.5 mm
3.13 / 3.76 in

Compression

23 to 1

Firing Order

1 - 3 - 4 - 2

Direction of Rotation

CCW, viewed from flywheel end

Lubrication

pressure lubrication with gear pump, full-flow filter

Oil Capacity (liter)

4.5

Mixture Preparation

distributor injection pump with governor and electric fuel cut-off valve

Fuel Octane Requrement

Diesel 45 Octane

Engine Electronics

12-volt System with 90A Alternator, 1.8kW starter motor

Cooling

closed cooling system, pressurized

Installation

viewed from flywheel end, cylinder bores inclined 20degrees  to the right

Dimensions
Height (mm)
Width (mm)
Length (mm)


637
677
530


635
625
520

Weight (Dry)

135 kg / 298 lbs

130 kg / 287 lbs

Power vs. RPM
Fuel Consumption
Torque

max. output 78 HP


max. output 58 HP

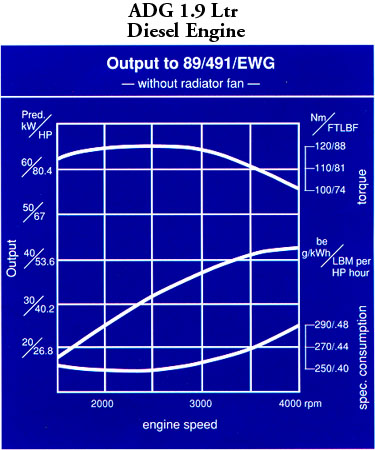

ADG 1.9 L Power Graph

ADG Specs

RPM

Output
(hp)

Torque
 (ft/lb)

Fuel
lbm/hp/hr

1800

30

94

.430

2000

33.5

94

.420

2200

38

94

.415

2400

41.5

93

.413

2600

44

93

.415

2800

47

92

.420

3000

49.5

90

.430

3200

52

88

.440

3400

54

87

.445

3600

56

84

.450

3800

57

81

.460

4000

58

77

.480

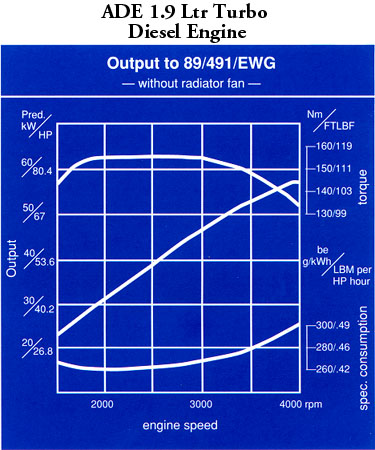

ADE 1.9 L Power Graph

ADE Specs

RPM

Output
(hp)

Torque
 (ft/lb)

Fuel
lbm/hp/hr

1800

38.8

114

.435

2000

44

114

.435

2200

48

114

.439

2400

52

114

.440

2600

56.5

114

.441

2800

60

114

.443

3000

63

114

.450

3200

67

112

.457

3400

70

110

.464

3600

72

107

.476

3800

73.7

102

.482

4000

75

98

.490





Audi Five cylinders, 20 valves and 163 CV

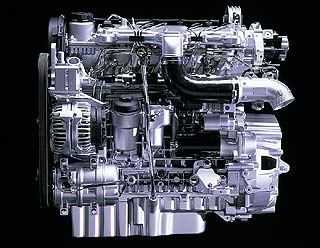

Motor I Return 2.4 D5 of 163 CVI return introduces in its model S60, V70 and S80 a motor one Diesel of own production that substitutes al 2,5 TDi of five cylinders with 140 CV (D5252T) that utilized to date and that is of origin Audi. The new propellant (called by it marks D5244T) is completely different and is the first motor one Diesel for cars that Return has manufactured in its history. It has been carried out leaving on the base of the five cylinders 2.4 of gasoline, of which takes advantage of the same block of aluminum. In fact, when developed said motor (launched in 1991 in the I Return 850) was done already thinking about a variant future Diesel.

I return maintains the disposition of five cylinders in line but, so much the block as the culata , are now manufactured in aluminum , what has permitted to carry out light one more motor (only 185 kilograms). This new direct motor of injection receives also the technology of the common conduit and its culata has double cam shaft and four valves by cylinder. The common conduit is of second generation and works to a greater pressure (to 1.600 bars), what permits to pulverize better the fuel to optimize the mixture and to improve the performance. On the other hand, have been lightened al most maximum the interior components (pistones and bielas) and The level of friction of the elements of the distribution has been reduced. This motor has also a turbocompresor of variable geometry that has permitted to obtain an excellent value of pair since low returns (340 Nm to 1.750 rpm) and to increase the power to most maximum state (163 CV to 4.000 rpm).

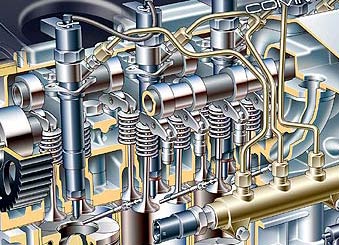

Distribució n with elements of low fricció nThe greater efficacy in the combustion of the new motor I Return has permitted to reduce the consumption and the emissions contaminants. The system of recirculación of gases of escape that has is another of the makers of its under level of emissions. It marks it Swede it declares a medium consumption of 6,0 liters/100 km in the S60, 6,4 l/100 km in the V70 and 6,1 litros/100 km in the S80. With similar figures, the automomía of these models can come to be of to 1.170 kilometers. Also it is announced some notable benefits, with an acceleration from 0 to 100 km h in 9,5 seconds for the S60 D5 and 9,8 seconds for the I Return S80 D5. The maximum velocity is similar in both models: 210 km h.

This motor is mounted in him I Return S60, V70 and S80 and further on will be utilized also in other models as the future one SUV that will present I Return at the beginning of 2002 and will be derived from the I Return ACC. In the S60 the price of the version Diesel is very similar al of the 2,4 liters of 170 CV.

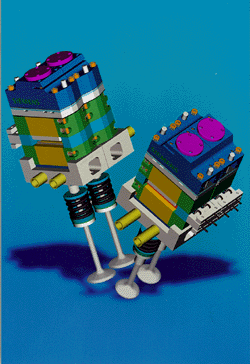

Camless Engine (EVT)
The camless engine is gathering momentum. Successfully tested for full-load capability even at maximum speed. Armature-position sensors guarantee soft valve landing. These sensors are integrated in the actuators of the electromechanical valve train.



Corsa 1.3CDTI

Corsa 1.3CDTI engine is the smallest four-cylinder diesel in the world. First jointly-developed engine from the Opel/GM-Fiat powertrain venture. comes from Fiat and has been used in Punto. Famous for being the smallest four-pot common-rail diesel in the world. Multijet technology helps it to achieve 62.7mpg. ...............................The 16v engine uses a*** CAST IRON block*** (bore x stroke: 69.6 x 82.0 mm compact dimensions (length/width/height: 460/500/650 millimeters)with a light-alloy cylinder head.70 hp at 4000 rpm and maximum torque of 170 Nm is available between 1750 and 2500 rpm.meets Euro 4 emission standards. There are four valves per cylinder, operated by roller cam followers from two chain-driven overhead camshafts. A multi-jet direct injection system is supplied with fuel via a common-rail system at a pressure of 1600 bar. Fuel supply to the five-hole nozzles is controlled via an ultramodern solenoid valve. The fuel injection system's response time is less than 20 millionths of a second, ensuring extremely fine metering of the fuel and up to five injections per working cycle. This not only keeps fuel consumption and exhaust emissions extremely low, but also ensures smooth, low-noise operation. ****Pilot injection*** helps to reduce the once notorious diesel-engine knock in the warm-up phase to a hardly identifiable level;; ............................................................................. Corsa 1.7 CDTI 74 kW (100 hp) 1.7 CDTI ECOTEC features a turbo charger with variable turbine geometry and develops a maximum torque of 240 Newton meters





New Smart Car Four Door Smart expects to produce 80,000 units in the first full-year. Meanwhile, the group has also decided to sell the Smart in the USA from 2006, but the car will be built in DaimlerChrysler’s plant in Juiz de Fora, Brazil, where Mercedes A-class and C-class are being produced now.



The European Smart Four Seater 2 diesels - 67hp and 94hp 1.5-litre common-rail turbo diesel
