HF-6014


PROJECT: HF-6014
DESCRIPTION: Digital System based on H8/3214
STATUS: q
LOCALISATION: LF
DOCUMENTATION: TM
PCB: see table
DIMENSIONS: 90 x 70 mm
SUPPLY VOLTAGE: 5 V
HARDWARE VERSION: 2.2
SOFTWARE VERSION: 0.01

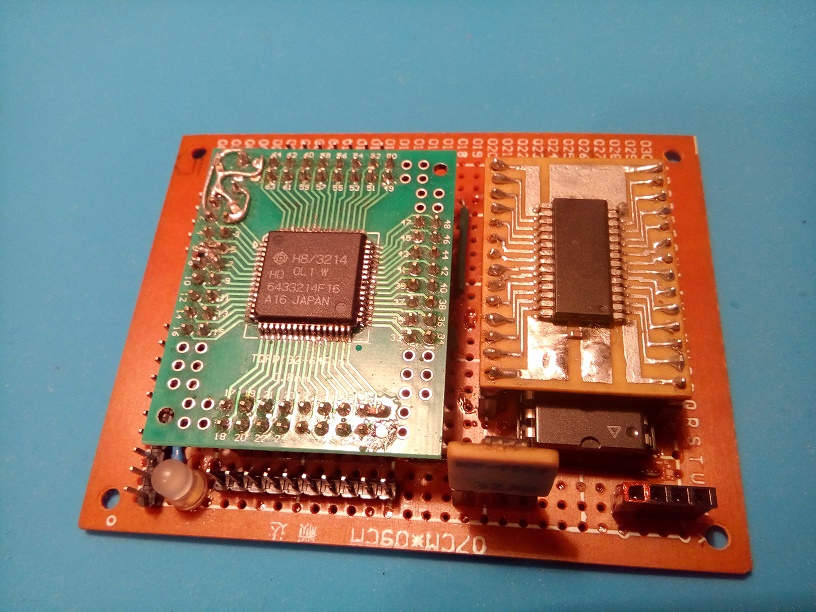

Extender board HF-60247 with attached modules HF-12247, HF-64115 and HF-1471




Modules:
PROJECTSTATUSPCBREMARKS
HF-60247qTPD52911#9Extension Board
HF-12247uTPD52906#1Microprocessor module (removable), UC-046
HF-64115#2uTPD20291#2RAM module, 32KB, 5V (removable)
HF-1469#1uTPD42236#1optional: Memory module 4KB
HF-1469#2uTPD42236#2optional: Memory module 4KB
HF-1471uTPD42236#3optional: Memory module 32KB
HF-17852uTPD57852optional: RS232-UART Converter


Project Info

HF-6014 is new assigned designator for this project, which containes 3 main elements: microprocessor module HF-12247, extension board HF-60247 and RAM module HF-64115#2. HITACHI H8/3214 is 1980's CPU with external ROM and RAM interface.

Planning to run my operational system THOS-1 on this board.
Experiences gathered with construction of this system will be used in HF-6015 system where all these elements will be integrated on one PCB.



This system has the following features:

  • Removable Flash ROM 128KB (DIP32 socket)
  • Removable RAM module 32KB
  • 26 I/O pins available as external ports
  • 28 I/O pins used for extension board resources
  • Reset button
  • LED for supply voltage control
  • HF-10032 I2C interface (memory drives HF-1469, HF-1471, etc with THFS file system)
  • HF-10040 UART interface for communication
  • Protection against reversed supply polarity
  • Buzzer
  • EEPROM 2KB 24C16 (DIP8 socket)



    • Sources:
    [1] HD6433214 Datasheet
