X-10

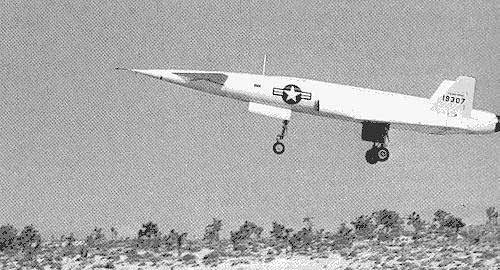

![](x_planes/X-10.jpg) Specifications Company- North American
Aviation Type- Navaho cruise missile
components.
Goals- Testbed for Navaho
intercontinental cruise missile components.
Primary Testing Facility
Research- Edwards AFB Dimensions- Span- 28 ft, 2 in; Length- 71 ft, 0 in;
Height: 14 ft, 5 in Max Speed- Mach 2.0+ Range-
850 miles Max Altitude- 44,800 feet Power Plant- Two Westinghouse
XJ40-WE-1 turbojets with afterburners Thrust-
20,000 lbf Weights- Fully Loaded: 38,000
lbs Payload- N/A Flights-
15 Number of Prototypes Built- 13 Project Tenure- 1955-1959 Project Status- Cancelled Information The X-10 was a supersonic research vehicle used to gather data on aerodynamic design, control, and automatic guidance systems in the development of the SM-64 "Navaho" intercontinental winged guided missile. Powered by two turbojet engines the pilotless X-10 was radio-controlled in the initial stages of the test program. Many later flights were preprogrammed using autonavigation system. The X-10's design featured a low, delta wing configuration, twin vertical fins, and nose-mounted canard surfaces for pitch control. Retractable landing gear and a drag chute permitted recovery and re-use for further flight testing. The X-10 was first flown on October 14, 1053 at Edwards AFB, California. Many additional test flights were conducted, first at Edwards AFB, and later at Patrick AFB, Florida. However, the X-10 research project was halted when the "Navaho" program was cancelled in 1957. The 27th and last X-10 flight took place on February 4, 1957. Although 13 X-10s were built, there is only one vehicle still known to be in existence. ** Information provided by X-Plane Data Site ** |
