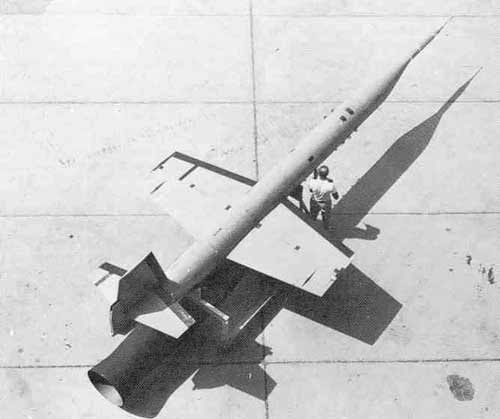

X-7A/X-7A-3/X-7B/X-7Q5
![](x_planes/X-7.jpg) Specifications Company- Lockheed
Missiles Type- Flight demonstrator for high speed air-breathing engines (Ramjets).
Goals- Test viability of
ramjet engines for anti-aircraft missiles; modified to testing of
powerplants.
Primary Testing Facility
Research- New Mexico Dimensions- Span- 12 ft, 0 in (A), 10 ft, 0 in (B); Length- 32 ft, 9 in (A), 27 ft, 0 in (B) Max Speed-
Mach 4.31 (2,881 MPH) Range- N/A Max Altitude-
106,000 ft Power Plant- Alleghany
Ballistics Laboratories X202-C3 solid-fuel rocket and a combination of solid fuel boosters and ram-jet engines Thrust-
105,000 lbf Weights- Fully Loaded: 8,000
pounds Payload- N/A Flights-
130 Number of Prototypes Built- 61 Project Tenure- 1951-1960 Project Status- Cancelled Information Holds the ultimate speed record for air-breathing aircraft, at over 2,000 mph. This X-7 series was flown in many different configuration and had many missions during its 10 year service life. In addition to serving as a ram-jet test bed, it carried communication equipment for acceleration testing, and was used to test aerodynamics, booster propellants, thermodynamics and high speed parachutes. Flight testing was conducted by the United States Air Force, United States Army and the United States Navy. Several X-7 examples can be found around the United States including at the White Sands missile test range. ** Information provided by X-Planes Data Site ** |
