X-24A/X-24B
![](x_planes/X-24.jpg) Specifications Company- Martin Marietta Type- Flight demonstrator for investigating the feasibility of lifting body design.
Goals- Research of
aerodynamics, flight characteristics of manned vehicle with FDL-7
configuration [FDL-7 equals Flight Dynamics Laboratory -7, a prototype
test craft of the Air Force's Flight Dynamics Laboratory, a predecessor
to the X-24B].
Primary Testing Facility
Research- Edwards AFB Dimensions-
Span- 11 ft, 6 in (A); Length: 24 ft, 6 in (A); Height: 9 ft 7 in (A) Max Speed- Mach 1.62
(1,036 MPH) Range- 45 miles Max Altitude- 71,407 feet (A), 74,132 ft (B) Power Plant- One Reaction Motors (Thiokol) XLR-11
four-chamber rocket engine Thrust- 8,480
lbf Weights- Empty: 6,360 lbs; Full
Loaded: 10,700 lbs; Maximum: 11,447 lbs Payload- N/A Flights- 64 Number of Prototypes Built- 1 Project Tenure- 1969-1975 Project Status- Cancelled Information
The X-24 was an experimental US aircraft developed
from a joint USAF-NASA program named PILOT (1963-1975). It was designed
and built to test lifting body concepts, experimenting with the concept
of unpowered reentry and landing, later used by the Space Shuttle.
The X-24 was one of a group of lifting bodies flown
by the NASA Flight Research Center (now Dryden Flight Research Center)
in a joint program with the U.S. Air Force at Edwards Air Force Base in
California from 1963 to 1975. The lifting bodies were used to
demonstrate the ability of pilots to maneuver and safely land wingless
vehicles designed to fly back to Earth from space and be landed like an
airplane at a predetermined site.
Lifting bodies� aerodynamic lift, essential to
flight in the atmosphere, was obtained from their shape. The addition of
fins and control surfaces allowed the pilots to stabilize and control
the vehicles and regulate their flight paths.
The X-24 was built by Martin Marietta and flown
from Edwards AFB, California. The X-24A was the fourth lifting body
design to fly, it followed the NASA M2-F1 in 1964, the Northrop HL-10 in
(1966), the Northrop M2-F2 in 1968 and preceded the Northrop M2-F3
(1970).

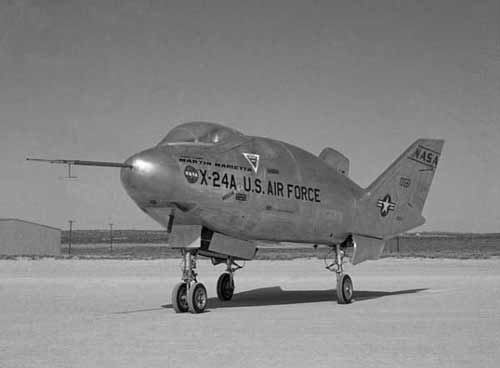

The X-24A was a fat, short teardrop shape with
vertical fins for control. It made its first, unpowered, glide flight on
April 17, 1969 with Air Force Maj. Jerauld Gentry at the controls.
Gentry also piloted its first powered flight on March 19, 1970. The
craft was taken to around 45,000 feet (13.7 km) by a modified B-52 and
then drop launched, then either glided down or used its rocket engine to
ascend to higher altitudes before gliding down. The X-24A was flown 28
times at speeds up to 1,036 mph (1,667 km/h) and altitudes up to 71,400
feet (21.8 km).
The X-24A was flown 28 times in the program that,
like the HL-10, validated the concept that a Space Shuttle vehicle could
be landed unpowered. The fastest speed achieved by the X-24A was 1,036
miles per hour (1667 km/h or Mach 1.6). Its maximum altitude was 71,400
feet (21.8 km) . It was powered by an XLR-11 rocket engine with a
maximum theoretical vacuum thrust of 8,480 pounds force (37.7 kN).
The X-24A was modified into the more stable X-24B
with an entirely different shape in 1972. The bulbous shape of the X-24A
was converted into a "flying flatiron" shape with a rounded top, flat
bottom, and double delta platform that ended in a pointed nose. It was
the basis for the Martin SV-5J. The X-24A shape was later borrowed for
the X-38 Crew Return Vehicle (CRV) technology demonstrator for the
International Space Station.
- X-24A pilots
- Jerauld R. Gentry - 13 flights
- John A. Manke - 12 flights
- Cecil W. Powell - 3 flights
The X-24B's design evolved from a family of
potential reentry shapes, each with higher lift-to-drag ratios, proposed
by the Air Force Flight Dynamics Laboratory. To reduce the costs of
constructing a research vehicle, the Air Force returned the X-24A to the
Martin Marietta Corporation (as Martin Aircraft Company became after a
merger) for modifications that converted its bulbous shape into one
resembling a "flying flatiron" -- rounded top, flat bottom, and a double
delta planform that ended in a pointed nose.
First to fly the X-24B was John Manke, a glide
flight on 1 August 1973. He was also the pilot on the first powered
mission 15 November 1973.
The X-24B demonstrated that accurate unpowered
reentry vehicle landings were operationally feasible. Top speed achieved
by the X-24B was 1,164 mph (1873 km/h) and the highest altitude it
reached was 74,130 feet (22.59 km). The vehicle is on display at the Air
Force Museum, Wright-Patterson Air Force Base, Ohio. The pilot on the
last powered flight of the X-24B was Bill Dana, who also flew the last
X-15 flight about seven years earlier.
Among the final flights with the X-24B were two
precise landings on the main concrete runway at Edwards which showed
that accurate unpowered reentry vehicle landings were operationally
feasible. These missions were flown by Manke and Air Force Maj. Mike
Love, and represented the final milestone in a program that helped write
the flight plan for today's Space Shuttle program.
The X-24B was the last aircraft to fly in Dryden's
Lifting Body program. The X-24B was flown 36 times.
The X-24B is on public display at the National
Museum of the United States Air Force, Wright-Patterson AFB, Ohio.
- X-24B pilots
- John A. Manke - 16 flights
- Michael V. Love - 12 flights
- William H. Dana - 2 flights
- Einar K. Enevoldson - 2 flights
- Thomas C. McMurtry - 2 flights
- Francis Scobee - 2 flights
There were a variety of "X-24C" proposals floated
between 1972 and 1978. Perhaps the most notable was a Lockheed Skunk
Works design, which would use scramjets to reach a top speed of Mach 8.
** Information provided by Wikipedia ** |
